PRODUCT STRUCTURE AND FEATURES
TY-JYM Connecting-rod-type double-point precision press
- Italian team design, double deformation elbow liver type drive;
- Suitable for thick plate precision cold molding, suitable for continuous mold, stage inlet mode automatic stamping;
- Enhanced frame type high-rigid fuselage and platform plate;
- The slider remains at the next dead point for about 40 degrees;
- Maximize the extended molding time of products;
- Ensure the plastic molding of metal products;
- Realize the smooth flushing section of fine flushing processing;
- Can produce products with high verticality and planarity requirements;
- Extend mold life and reduce mold repair.
Name | TY-JYM-200 | TY-JYM-300 | TY-JYM-450 | TY-JYM-600 | TY-JYM-800 | TY-JYM-1000 | ||
Technical parameters | ||||||||
Model | ||||||||
The nominal force | KN | 2000 | 3000 | 4500 | 6000 | 8000 | 10000 | |
The nominal force trip | mm | 7 | 7 | 7 | 7 | 10 | 10 | |
Ram travel | mm | 150 | 150 | 150 | 200 | 200 | 200 | |
Number of strokes | S.P.M | 40~80 | 40~80 | 35~70 | 40~60 | 35~50 | 30~40 | |
Maximum die set height | mm | 450 | 450 | 500 | 550 | 550 | 600 | |
Mounding height adjustment amount | mm | 120 | 120 | 120 | 150 | 150 | 150 | |
Worktable | Left and right | mm | 1700 | 2000 | 2000 | 2400 | 2800 | 3000 |
from beginning to end | mm | 800 | 900 | 1000 | 1200 | 1300 | 1400 | |
The bottom surface of the slider | Left and right | mm | 1700 | 2000 | 2000 | 2400 | 2800 | 3000 |
from beginning to end | mm | 700 | 800 | 900 | 1000 | 1200 | 1300 | |
Power of main motor | KW | 37 | 45 | 75 | 90 | 110 | 132 | |
Supply pressure | MPa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |

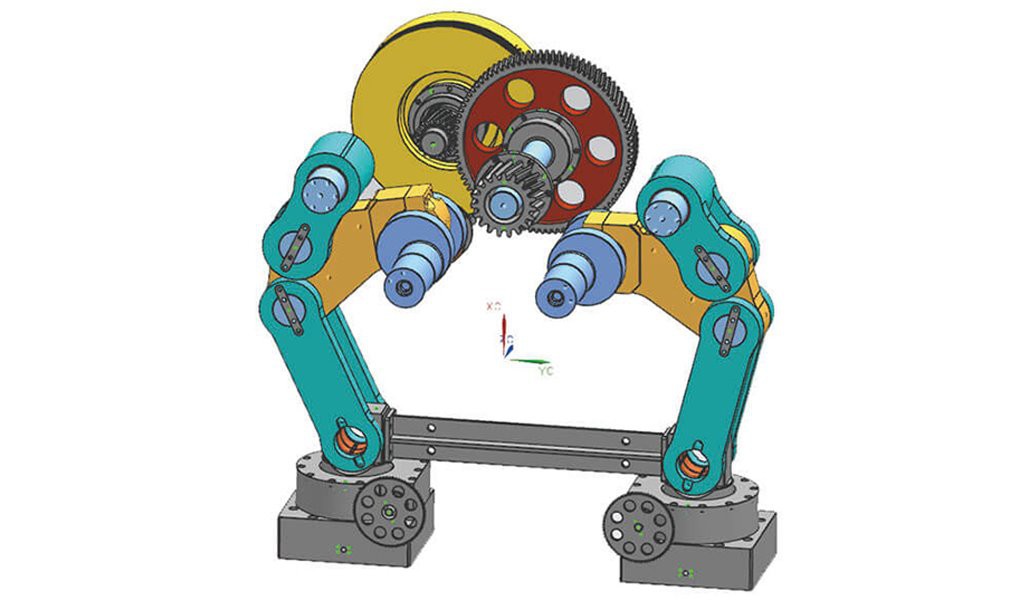

Press structure sketch
Stroke motion curve
