PRODUCT STRUCTURE AND FEATURES

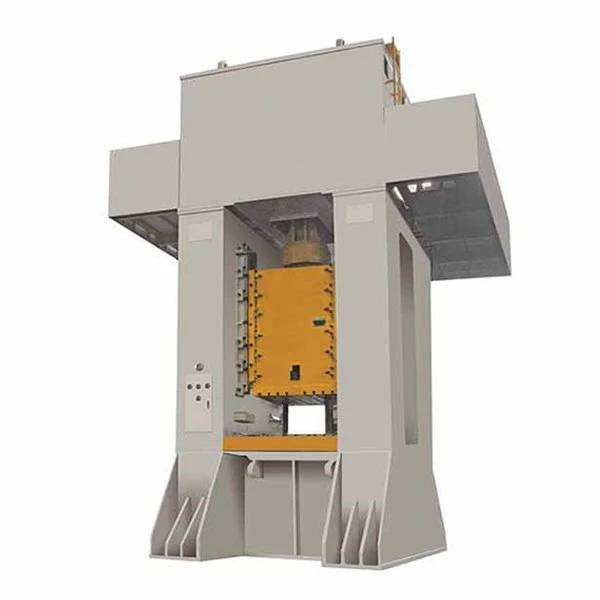

TY-JJH31/JJF31 Closed type single point press
- High accuracy, to meet the j i s level 1 standard;
- Closed, high-rigid welded fuselage;
- High-precision eight-sided long guide rail;
- Dry-type pneumatic friction clutch;
- Import safety double-coupling solenoid valve;
- High-sensitivity hydraulic overload protection;
- Automatic lubrication of dilute oil;
- Frequency control;
- Centralized control of PLC, convenient operation;
Selection: output shaft, air cushion, slider feeding, automatic feeding and other devices;
Name | TY-JJH31-315 | TY-JJH31-400 | TY-JJH31-500 | TY-JJF31-630 | TY-JJF31-800 | TY-JJF31-1000 | TY-JJF31-1250 | TY-JJF31-1600 | |||
Technical parameters | |||||||||||
Model | |||||||||||
The nominal force | KN | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | ||
The nominal force trip | mm | 10.5 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | ||
Ram travel | mm | 315 | 400 | 400 | 400 | 500 | 500 | 500 | 500 | ||
Number of strokes | S.P.M | 15~20 | 15~20 | 15~18 | 12~18 | 10~16 | 10~14 | 9~12 | 9~12 | ||
Maximum die set height | mm | 490 | 550 | 600 | 700 | 700 | 800 | 800 | 850 | ||
Mounding height adjustment amount | mm | 200 | 250 | 250 | 250 | 315 | 315 | 315 | 315 | ||
Interconductor distance | mm | 1120 | 1280 | 1330 | 1700 | 1870 | 1870 | 1880 | 1920 | ||
Worktable | Left and right | mm | 1100 | 1240 | 1240 | 1600 | 1800 | 1800 | 1800 | 1800 | |
From beginning to end | mm | 1100 | 1200 | 1200 | 1450 | 1600 | 1600 | 1600 | 1600 | ||
The thickness of the working table plate | mm | 140 | 160 | 200 | 220 | 240 | 260 | 280 | 300 | ||
The bottom surface of the slider | Left and right | mm | 1070 | 1230 | 1230 | 1600 | 1800 | 1800 | 1800 | 1800 | |
From beginning to end | mm | 960 | 1000 | 1000 | 1450 | 1600 | 1600 | 1600 | 1600 | ||
Air cushion (optional) | The nominal force | KN | 200 | 200 | 500 | 1000 | 1250 | 1250 | 1250 | 1250 | |
Route or distance of travel | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | ||
Rigid feeding trip (optional) | mm | 110 | 130 | 150 | 150 | 200 | 200 | 200 | 250 | ||
Power of main motor | KW | 30 | 45 | 55 | 75 | 75 | 110 | 110 | 132 | ||
Note: JJH31 adopts overall welded body, and JJF31 adopts split welded body. | |||||||||||
