Closed Four-point (multi-link) Press

Four-point transmission;
Large travel, high rigidity, high precision, high stability;
Eccentric gear structure, large link center distance and strong partial load load;
High rigid body of cross beam, column and base separation;

Send Inquiry

Description

PRODUCT STRUCTURE AND FEATURES

TY-JYS4/JYS4L

Closed four-point (multi-link) press

Four-point transmission;
Large travel, high rigidity, high precision, high stability;
Eccentric gear structure, large link center distance and strong partial load load;
High rigid body of cross beam, column and base separation;
High-precision ultra-long eight-sided orientation;
High torque and low inertia pneumatic clutch brake;
High-sensitivity hydraulic overload protection;
Automatic lubrication of dilute oil;
High-security plc dual-loop control;
Optional: air cushion (can increase stroke adjustment, locking and other functions), mobile workbench, automatic material selection, tonometer, air pressure and molding height automatic adjustment device

Production lines

die cutting press machine production line

Name	Technical parameters	Model	The nominal force	The nominal force trip	Ram travel	Number of strokes	Maximum die set height	Mounding height adjustment amount	Worktable				The bottom surface of the slider		Side opening size (fixed abutment / moved forward)	Power of main motor	Air cushion
Name	Technical parameters	Model	The nominal force	The nominal force trip	Ram travel	Number of strokes	Maximum die set height	Mounding height adjustment amount	Plate size (left and right x front and rear)	Modality	The work table is high from the ground level	Mobile table carrying capacity	Botface dimension (left and right x front and rear)	Maximum upper module weight	Side opening size (fixed abutment / moved forward)	Power of main motor	The nominal force	Route or distance of travel
Unit			KN	mm	mm	S.P.M	mm	mm	mm		mm	T	mm	T	mm	KW	KN	mm
TY-JYS4-500			5000	13	700	8~20	1400	600	4000X2200	Move forward/side	700	30	4000X2200	15	1200	90	1000	20~200
TY-JYS4-630			6300	13	800	8~20	1400	600	4500X2500	Move forward/side	700	40	4500X2500	20	1200	110	1200	25~250
TY-JYS4-800			8000	13	900	8~20	1400	600	4500X2500	Move forward/side	700	40	4500X2500	20	1400	132	1500	25~250
TY-JYS4-1000			10000	13	900	8~20	1400	600	4500X2500	Move forward/side	700	40	4500X2500	20	1600	160	2000	25~250
TY-JYS4-1000			10000	13	1250	8~20	1500	700	4600X2500	Move forward/side	800	40	4600X2500	20	1600	200	2000	25~250
TY-JYS4-1300			13000	13	800	12~18	1400	600	5500X2500	Move forward/side	700	50	5500X2500	25	1800	200	2000	25~250
			13000	13	800	10~20	1400	600	4200X2200	Move forward/side	750	40	4200X2200	20	1800	200	2000	25~250
			13000	13	1100	10~20	1400	600	4800X2500	Move forward/side	800	40	4800X2500	20	1800	250	2000	25~250
TY-JYS4-1600			16000	13	800	10~20	1400	600	5000X2500	Move forward/side	700	40	5000X2500	20	1800	250	2500	30~300
TY-JYS4-2000			20000	13	800	12~18	1400	600	5000X2500	Move forward/side	750	50	5000X2500	25	1800	280	2500	30~300
TY-JYS4L-630			6300	13	800	8~18	1200	500	4000X2200	Move forward/side	650	30	4000X2200	15	1400	110	1200	25~250
TY-JYS4L-800			8000	13	800	8~18	1200	500	4000X2200	Move forward/side	650	30	4000X2200	15	1400	132	1500	25~250
TY-JYS4L-1000			10000	13	800	8~18	1200	500	4000X2200	Move forward/side	650	30	4000X2200	15	1600	160	2000	25~250
TY-JYS4L-1300			13000	13	1000	8~18	1300	600	4200X2200	Move forward/side	650	30	4200X2200	15	1800	200	2000	25~250
TY-JYS4L-1600			16000	13	900	8~20	1400	600	4500X2500	Move forward/side	700	50	4500X2500	25	1800	250	2500	30~300
TY-JYS4L-1600			16000	13	1300	8~18	1530	530	5000X2500	Move forward/side	800	60	5000X2500	25	1800	280	2500	30~300
TY-JYS4L-2000			20000	13	1000	10~18	1530	530	5000X2500	Move forward/side	800	60	5000X2500	25	1800	315	3000	30~300
TY-JYS4L-2500			25000	13	1400	8~20	1530	530	5000X2500	Move forward/side	800	60	5000X2500	25	2000	435	3500	30~300

Hot Tags: closed four-point (multi-link) press, China, suppliers, manufacturers, factory, buy, price, made in China, High speed Precision Hot die forging Press, High-speed Precision Hot-die forging Press, Closed Double-point Die Press, Single point High performance Press, Closed Four-point Feed-drop Press, Hot Die forging Pressure Machine

Closed Double-point Die Press

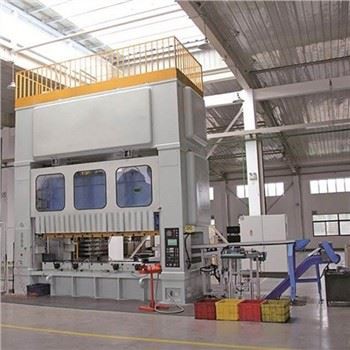

Straight Side Two Point Press
