PRODUCT STRUCTURE AND FEATURES
TY300 procession CNC lathe
TY300 is a high-precision, high-efficiency automated machine tool.Equipped with multi-station turret, it has a wide range of processingperformance. It also hasvarious functions such as linear.

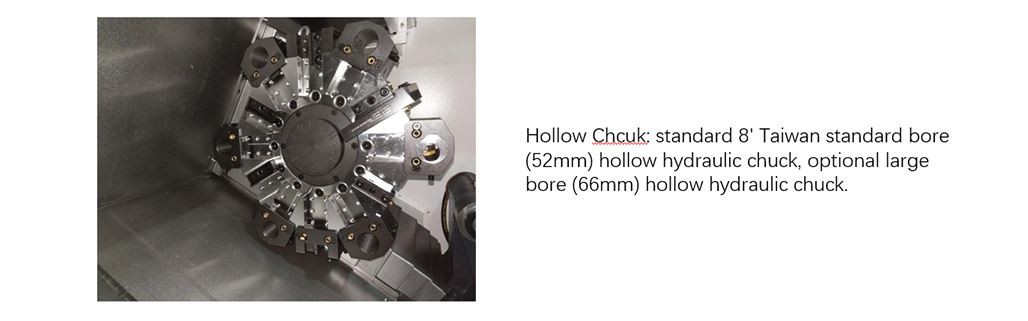

TY300 | S.A.E. | METRIC |
CAPACITY | ||
Chuck size | 10" | |
Chuck Swing Over Bed | Φ24.8" | Φ680mm |
Max.Turning diameter(Disc) | Φ18" | Φ630mm |
Max.Turning diameter(Shaft) | Φ12" | Φ460mm |
Max.Turning length | 25" | 640mm |
Spindle Center to the ground | 41" | 1050mm |
SPINDLE | ||
Spindle Speed | 3000 RPM | |
Spindle Nose | A2#8 | |
Spindle Motor power | 20/25 hp | 15/18.5KW |
Spindle Torque | 140 ft-lb | 382Nm |
Spindle Through hole | Φ3.6" | Φ91mm |
FEEDRATE | ||
Rapids on X | 16000 mm/min | |
Rapids on Z | 20000 mm/min | |
Speed on X/Z | 3000/3000 RPM | |
Torque on X/Z | 11/20 Nm | |
TRAVEL | ||
X Travel | 10.43" | 265mm |
Z Travel | 26.8" | 680mm |
Screw Diameter | Φ28/Φ40mm | |
Screw Pitch | 10/10mm | |
Cutting Feed | 393.7 IPM | 1-10000 mm/min |
Min.Feed | 0.001 mm/min | |
TURRET | ||
Tool Post Stations | 12 | |
Turret Type | Servo Turret+Hydraulic locking | |
Outside Tool size | 1.3"*1.3" | 32mm*32mm |
Max.Boring bar size | Φ1.6" | Φ40mm |
Tailstock | ||
Type | Manual Hydraulic Tailstock | |
Quill Diameter | 4" | Φ100 |
Quill Bore taper | MT#3(with nut thimble) | |
Tailstock travel/Quill travel | 27"/4" | 740/80mm |
ACCURACY | ||
Positional Accuracy | 0.01 mm | |
Repeatability Accuracy | 0.006 mm | |
Weight | 7936.64 LBS | 4700kg |
Dimensions | 110.24"*80.71" | 2891mm*2500mm |
Height | 68.90" | 1900mm |
CAPACITY | ||
Electric power supply | 30 KVA | |
Lubricating oil Capacity | 0.79 us gal | 3L |
Cutting Fluid Capacity | 31.7 us gal | 120L |
Control | Fanuc | |
STANDARD CONFIGURATION | ||
CONTENT | QUANTITY | NOTE |
FANUC Control | 1 | |
10.4inch TFT Color LED | 1 | |
Heat Exchanger Device | 1 | |
Automatic Oil Feed Lubricating Device | 1 | |
Metal Plate Protection | 1 | |
Dust-proof Device for Electric Cabinet | 1 | |
Warning Light | 1 | |
Cutting Fluid Coolant Device | 1 | |
LED Working Light | 1 | |
Foundation Bolts and Heel Block | 1 | |
Toolbox | 1 | |
Transformer | 1 | |
2 Axis Protection | 1 | |
Door Safety protection switch | 1 | |
Communication Interface、CF Card Slot | 1 | |
Oil-water Separation Box | 1 | |
Hydraulic Pressure Station 2AB+1A | 1 | |
Hydraulic Tailstock | 1 | |
MAIN PARTS SUPPLIERS | ||
PART NAME | SPECIFIC ATION | BRAND |
Controller | FANUC-OiTF | FANUC |
Spindle Motor | FANUC | |
X/Z axis Ball Screw | Φ28mm/Φ40mm | RMI/HIWIN |
Spindie | KASWIN（Korea） | |
Tailstock | KASWIN（Korea） | |
Turret | PRAGATI | |
Shaft Coupling | REACH | |
Heat Exchanger | DIORT | |
Electronic Component | Schneider/OMRON | |
Cutting Fluid Pump | Domestic Brand | |
Extensible Cover | Domestic Brand | |
Lubrication Syetem Components | Domestic Brand | |
Attached documents
Packing list 1 pcs only paper documents
Certification of conformity 1 pcs only paper documents
Fanuc Operation Manual 1pcs
Fanuc Parameter Manual 1pcs
Tony Operation Manual 1pcs
Tool Kit 1 set
