PRODUCT STRUCTURE AND FEATURES Improved hydraulic press TY64-100、200、315、400、500、630
Hydraulic sizing press 500TON
TY64-100,200,315,400,500,630 | |||||||
Main technical parameters of hydraulic machine | |||||||
Project | 100 | 200 | 315 | 400 | 500 | 630 | |
The nominal force/kN | 1000 | 2000 | 3150 | 4000 | 5000 | 6300 | |
Maximum liquid working pressure/MPa | 25 | 25 | 25 | 25 | 25 | 25 | |
Slider running parameters | Maximum suppression/kN | 1000 | 2000 | 3150 | 4000 | 5000 | 6300 |
Maximum return force/kN | 100 | 450 | 630 | 500 | 1000 | 1250 | |
Maximum stroke/mm | 400 | 500 | 500 | 500 | 500 | 500 | |
Fast down speed mm/s | 100 | 160 | 140 | 120 | 140 | 140 | |
Slow down speed mm/s | 15 | 12 | 12 | 15 | 10 | 10 | |
Opening speed mm/s | 120 | 170 | 120 | 150 | 100 | 100 | |
Top out piston operating parameters | Maximum top output/kN | 400 | 1000 | 1200 | 1200 | 2000 | 2000 |
Pull the maximum force/kN | 190 | 350 | 720 | 720 | 1350 | 1350 | |
Maximum stroke/mm | 150 | 200 | 200 | 200 | 200 | 200 | |
Top up the speed mm/s | 30 | 35 | 35 | 45 | 40 | 40 | |
Return speed mm/s | 45 | 45 | 45 | 45 | 45 | 40 | |
Operating parameters of the lower center cylinder piston | Maximum stretch/kN | 50 | 95 | 125 | 125 | 200 | 200 |
Maximum return force/kN | 35 | 65 | 80 | 80 | 150 | 150 | |
Maximum stroke/mm | 100 | 120 | 150 | 150 | 150 | 150 | |
Effective area of work surface (before and after about )/mm | 650X650 | 800X700 | 900X800 | 940X900 | 1020X1000 | 1020X1000 | |
Power of main motor/kW | 7.5 | 22 | 22 | 30 | 30 | 37 | |

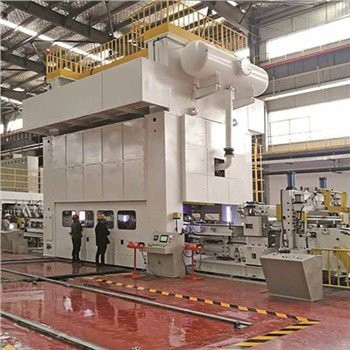

Work shops
