PRODUCT STRUCTURE AND FEATURES

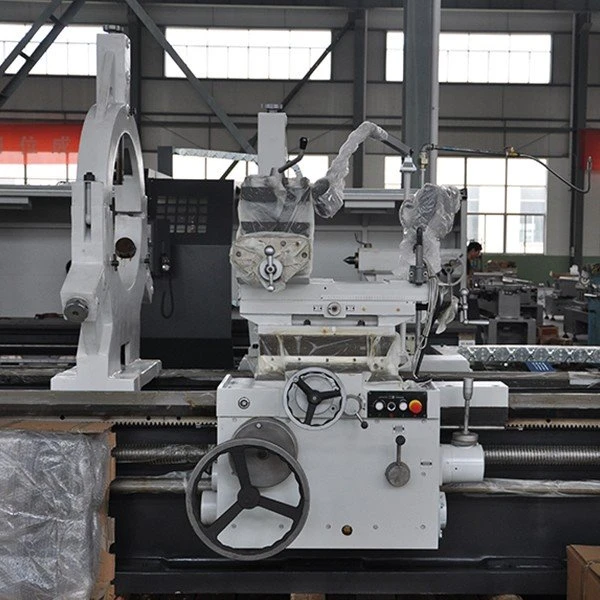

TY61140/TY61160 heavy duty CNC lathe machine
Max.swing over bed: Ф1400mm/1600mm
Max.swing over carriage: Ф1060mm/1260mm
Spindle bore: Ф130mm
Spindle speed: 2.5-250rpm/min
Main motor: 22Kw

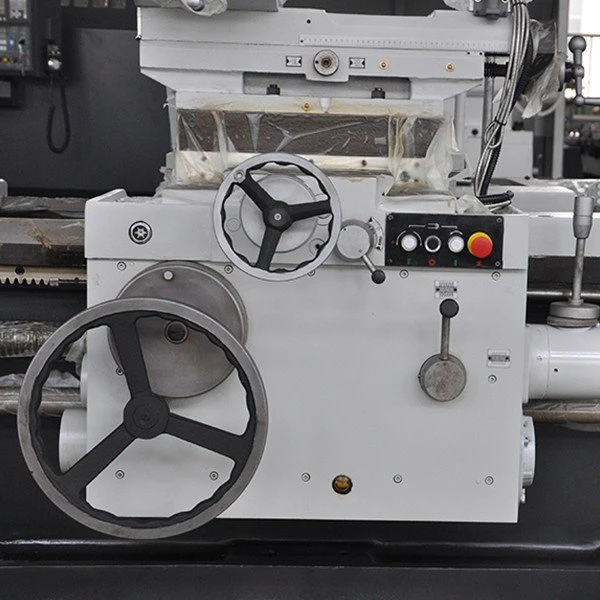

Product overview
The surface of the bed ways is supersonic frequency hardened and precision ground with a long service life.
The design of the main drive is optimized and the gears in the headstock are precision ground.
The noise of the machine is low.
Spindle bore: Ф130mm.
Spindle speed: 2.5-250rpm.
TY61140/TY61160(3m)dimension(LxWxH) | Shipping dimension(LxWxH) | Net weight |
6070x2130x1690mm | 6150x2150x2100mm | 14100kg/15100kg |
This document provides the weight and shipping dimensions. The weight listed for a machine may be off by as much as +/- 5% due to option selection, casting variations, and even the moisture content of the wooden crates surrounding the machine.
ITEM | TY61140/TY61160 |
MACHINING | |
Max. swing diameter over bed | Ф1400mm/1600mm |
Max. swing diameter over carriage | Ф1060mm/1260mm |
Max. swing diameter over gap (optional) | Ф1930mm/2110mm |
Effective length of gap (optional) | 590mm |
Width of bed | 970mm |
Effective length of gap | 590mm |
Max. turned length | 1.5/2/3/4/5/6/7/8/10/12m |
Max. length of workpiece | 1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8m |
Max. weight of workpiece | 6000kg |
SPINDLE | |
Spindle bore | A2-15 |
Spindle bore | Ф130mm |
Taper of bore | Metric Ф140m 1:20 |
Number of speed | 24(Normal) / 12(Reverse) |
Range of speed | 2.5-250rpm |
THREAD CUTTING | |
Metric range/No. | 1-120mm/45 |
Whitworth range/No. | 30-1/4 TPI/42 |
D.P range/No. | 0.5-60 D.P/48 |
Module range/No. | 0.5-60mm/46 |
Vertical distance from spindle center to installing basis | 51mm |
Size of tool shank | 50x50mm |
Max. travel of cross slide | 900mm |
Swing angle of tool post | ±90° |
Max. travel of top middle tool post | 400mm |
Max. travel of top slide | 200mm |
FEEDING | |
Pitch of longitudinal ball screw/diameter | 12mm/Ф70mm |
Number of longitudinal feed | 97 |
Longitudinal feed range of tool post for per.rev of spindle | 0.1-12mm/r |
Cross feed range oftool post for per.rev of spindle | 0.05-6mm/r |
Middle tool post feed range of tool post for per.rev of spindle | 0.025-3mm/r |
Rapid traverse of longitudinal | 3740mm/min |
Rapid traverse of cross | 1807mm/min |
Rapid traverse of middle tool post | 935mm/min |
TAILSTOCK | |
External diameter | Ф160mm |
Taper of bore | Metric 80mm |
Max. traverse | 300mm |
OTHER | |
Power of main motor | 22kw |
Rapid feed motor power | 1.5kw |
Coolant pump power | 0.25kw |
Overall dimensions(Lx Wx H) | 6100x2080x2130mm |
Net weight | 14100/15100kg |
The descriptions, illustrations and specifications given here in are subject to alteration without notice and thus without any obligation. | |
