Bench Lathe Machine

This document provides the weight and shipping dimensions. The weight listed for a machine may be off by as much as +/- 5% due to option selection, casting variations, and even the moisture content of the wooden crates surrounding the machine.

Send Inquiry

Description

PRODUCT STRUCTURE AND FEATURES

TY-1440K(58) bench lathe machine

Max.swing over bed: Ф356mm

Max.swing over carriage: Ф210mm

Spindle bore: Ф40mm

Spindle speed: 40-1800rpm

Main motor: 2.4kw

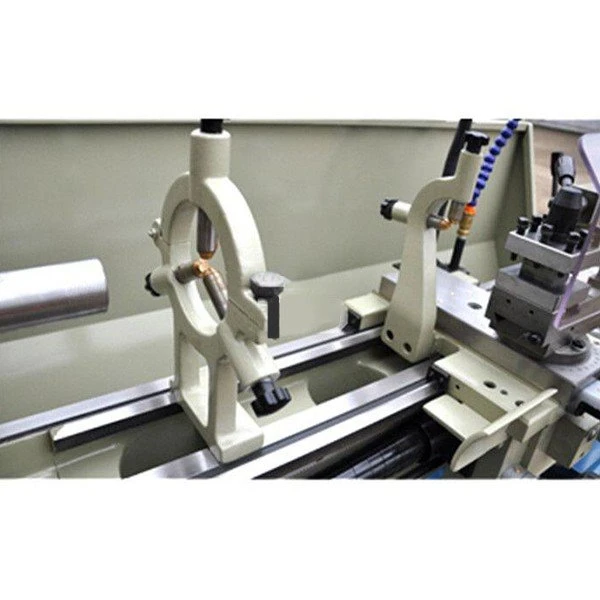

Product overview

The spindle is supported with precision roller bearings.

Gears made of high quality steel are ground and hardened.

The guideways are hardened.

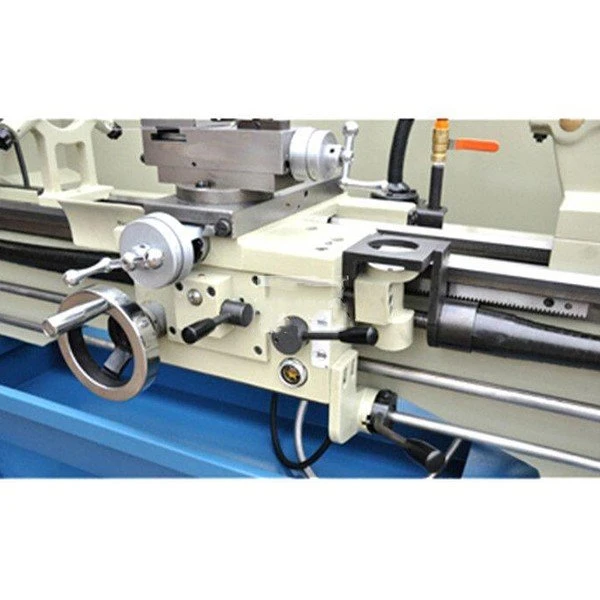

Feed box has various feeds and threads cutting functions.

Longitudinal feed: 0.043-0.653mm/r.

Cross feed: 0.024-0.359mm/r.

Spindle bore: Ф40mm.

Spindle speed: 40-1800rpm.

TY-1440K dimension (L x W x H):	Shipping dimension (L x W x H)	Net weight
1900x710x1170mm	1990x760x1400mm	1250kg

ITEM	TY-1440K
MACHINING
Max. swing diameter over bed	Ф356mm
Max. swing diameter over carriage	Ф210mm
Max. swing in gap	Ф508mm
Width of bed	260mm
Max. workpiece length	1000mm
SPINDLE
Taper of spindle bore	M.T.No.5
Diameter of spindle hole	Ф40mm
Number of speed steps	12
Spindle speed	40-1800rpm
Spindle nose	D4
THREAD & FEEDING
Metric pitch threads	0.4-7mm(37 kinds) Metric system
0.45-7.5mm(23 kinds) Inch system
Whitworth pitch threads	4-56T.P.I (28 kinds) Metric system
4-112T.P.I (40 kinds) Inch system
Range of longitudinal feeds	0.043-0.653(0.0012"-0.0294")
Range of cross feeds	0.024-0.359(0.0004"-0.0103")
LEADSCREW
Diameter of leadscrew	Ф22mm
Pitch threads of leadscrew	4mm or 8T.P.I.
TAILSTOCK
External diameter	Ф45mm
Taper of bore	M.T.No.3
Max.traverse	120mm
OTHER
Coolant pump motor power	0.04kw
Power of main motor	2.4kw
Overall dimensions (Lx Wx H)	1900X710x1170mm
Net weight	1250kg
The descriptions, illustrations and specifications given here in are subject to alteration without notice and thus without any obligation.
