PRODUCT STRUCTURE AND FEATURES

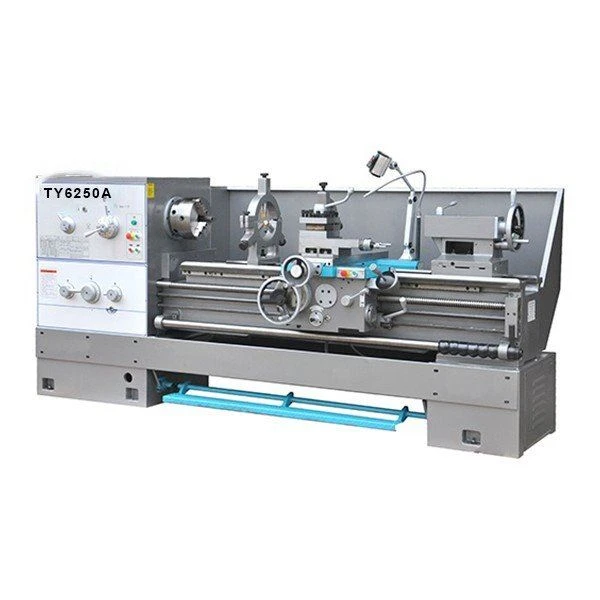

TY6250A conventional lathe machine
Max. swing over bed: Ф500mm
Max. swing over carriage: Ф310mm
Spindle bore: Ф80mm
Spindle speed: 36-1600rpm
Main motor: 7.5kW
Product overview
The surface of the bed ways is supersonic frequency hardened and precision ground with a long service life.
The design of the main drive is optimized and the gears in the headstock are precision ground.
The noise of the machine is low.
Spindle boreФ80mm.
Spindle speed: 36-1600 rpm.
TY6250A dimension(LxWxH) | Shipping dimension (LxWxH) | Net weight |
2500/3000/3500/4500x1100x1380mm | 2600/3170/3630/4630x1150x2050mm | 2900/3150/3400/3750kg |
This document provides the weight and shipping dimensions. The weight listed for a machine may be off by as much as +/- 5% due to option selection, casting variations, and even the moisture content of the wooden crates surrounding the machine.
ITEM | TY6250A |
MACHINING | |
Max. swing diameter over bed | Ф500mm |
Max. swing diameter over carriage | Ф310mm |
Max. swing diameter in gap | Ф720mm |
Max. workpiece length | 1000/1500/2000/3000mm |
SPINDLE | |
Spindle bore | Ф80 |
Taper of bore | M.T.No.7 |
Number of speed | 12 |
Range of speed | 36-1600rpm |
THREAD CUTTING | |
Metric range/No. | 1-14mm/22 |
Whitworth range/No. | 28-2T.P.I/26 |
D.P range/No. | 56-4D.P/24 |
Module range/No. | 0.5-7mm/18 |
FEEDING | |
Longitudinal | 0.063-2.52mm (0.023"-0.937") |
Cross | 0.027-1.07mm (0.010"-0.404") |
Rapid traverse speed of longitudinal | 4.5m/min |
Rapid traverse speed of cross | 1.9m/min |
Max. travel of top slide | 145mm |
Max. travel of cross slide | 340mm |
Max. size of tool(WxH) | 25x25mm |
TAILSTOCK | |
External diameter | Ф75mm |
Taper of bore | M.T.No.5 |
Max. traverse | 150mm |
OTHER | |
Power of main motor | 7.5kw |
Overall dimensions(Lx Wx H) | 2500/3000/3500/4500X1100x1380mm |
Net weight | 2900/3150/3400/3750kg |
The descriptions, illustrations and specifications given here in are subject to alteration without notice and thus without any obligation. | |
Configuration
Options
Tony product quality control:
We do the quality control of every detail and provide you with every quality service.
1: Strictly select high-quality raw materials that meet the standard, and use upper layer materials to forge upper layer products.
2: Strictly control the manufacturing process of Tony products.pay attention even very small mistake , to achieve the real quality control.
3: Strictly control every link of product sampling and test, excellence, quality selection.
4: Follow the international market standards in strict accordance with the international standards.
